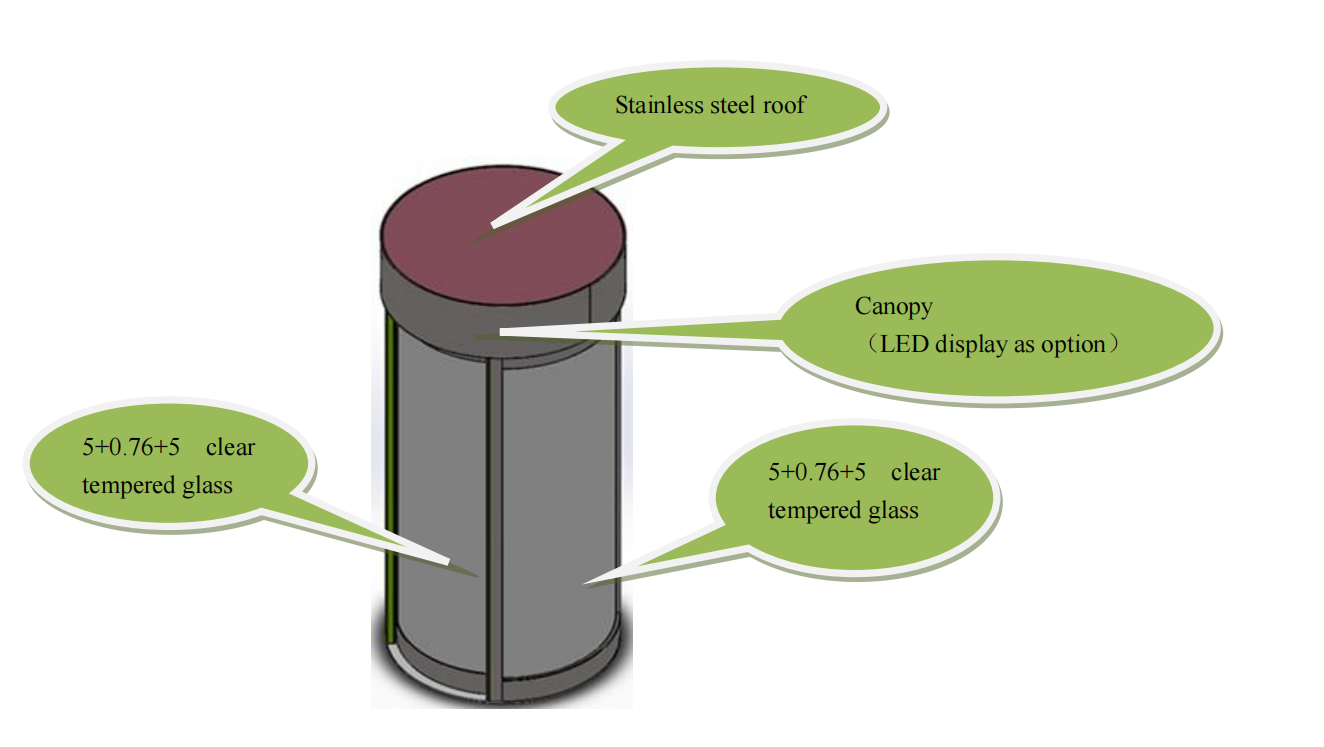

Introduction： KBB Security portal is the product which combined with effective anti-piggybacking function through binocular cameral monitoring video analysis system and sensor identification system.
Features：
1. Bi-direction identification: Bi-direction identification realize through binocular camera monitoring video analysis system and BEA sensor to ensure anti-piggybacking. Out control as optional.
2. Security identification interface:(optional) When the door close automatically after one person get into the door, extra identification (face /fingerprint/password etc.) is also available as optional part, the inner door will open automatically if identification passed.
3. Safety: Obstacle reverse: The door will reverse when meeting obstacle during closing，and change to into a buffer speed operation. Safety bumper protection: The door installed with safety bumper for anti-squeeze purpose.
4. Emergency escape： The door could be connected with fire signal of the building, the door could be set keeping opening when emergency, both door panels could be opened for escape.
5. Escape button (optional): The door with escape button inside in case emergency the person inside the door could push the button and out from outside door
6. Canopy LED display(optional) : The door canopy could be with LED display for special use as optional.
7. Voice guide: KBB International Co.Ltd. 2 / 7 There’s voice guild during the door working for better guide purpose.
8. Instruction light control interface: The light controlled by operation system automatically, the light will turn on when person get into the door and the light will turn off with a delay automatically after person get out of the door.
9. Running status and error code display: Display system running status and error code information
Technical data：
| O/S Diameter | I/S Diameter | Type of slide | Disabled access | Opening width | Passage width | Height under canopy | Canopy height |
| 3’-7 7/8” (1114mm) | 3’-4 3/16” (1020mm) | Single slide | No | 2’ (610mm) | 1’-9 3/4” (552mm) | 7’-6 15/16” (2310mm) | 11 13/16” (300mm) |
| 5’-39/16” (1614mm) | 4’-11 13/16”(1520mm) | Single slide | Yes | 2’-10 7/8” (884mm) | 2’-8 1/16” (814mm) | 7’-6 15/16” (2310mm) | 11 13/16” (300mm) |
