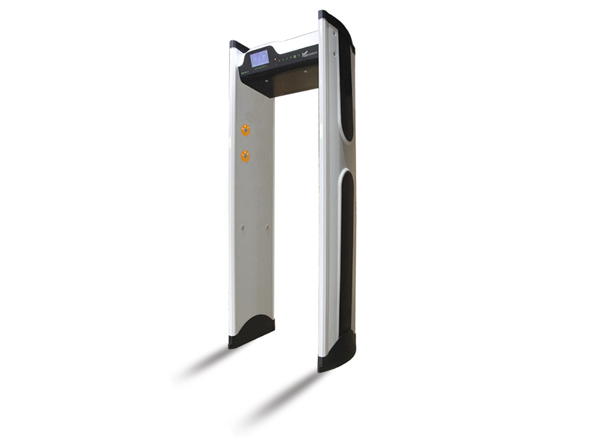

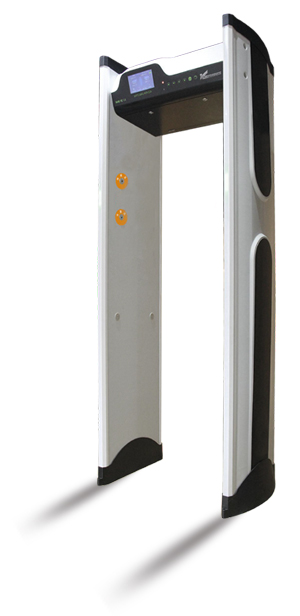

Walk through Temperature Detecting Door. It is used to check people have fever or not, especially under the current situation with COVID19 in most part of the world.
Public places, such as stations, shopping mall, store, school, hospital, hotel, prison etc., for all building entrance.
*Standard External size:
*Standard Internal size:
ⅠControl Unit Case
Ⅱ Left Door Panel
Ⅲ Right Door Panel
Ⅳ Detecting Tunnel
(1) Control Panel (2)Cover Plate (3)Top Seal (4) Screw (5)Power Switch
(6)Power Plug (7) Foot cover (8)LED Light (9)Alarm Light
(10) Infrared Sensor (11) Fixed Screw Hole (12) Temperature Sensor
(13) LED Screen.
l Efficient non-contact temperature measurement system for epidemic fever.
l Walk through body temperature detection with high accuracy of ±0.1°C.
l Alarm: LED & volume indicators.
l Safety temperature threshold with self-calibration.
l Buzzer and LED alarm in case safety threshold is exceeded.
l Low rate of false alarm with advance digital signal processing technology.

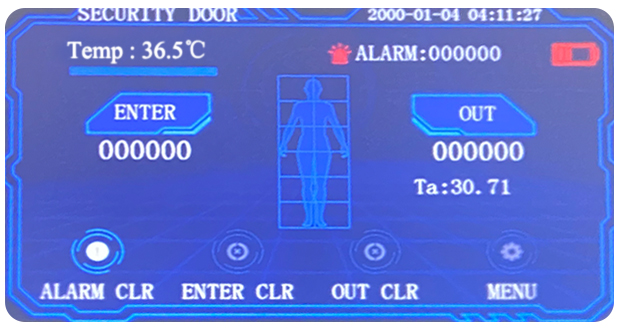

l LCD screen display with infrared remote controller for setting programs.
l Supports network software for real time monitoring and retrieving data (option).
Height of IR temperature sensor
1.45m & 1.65m (standard)
LED alarm & volume alarm
Passenger & Alarm No.
Grey & white
RJ45 (for option)
-support display on monitor
Password & hardware key
Function Metal detection
for option (6/12/18zones)
Package Size(2 cartons)
Working environment 1
15°C ~ +35 °C
Working environment 2
No direct sunlight
