KBB's superior designs for revolving doors provide an imposing entrance to any building, while serving as an airlock as well, to minimize a building's heating and air conditioning losses, therefore maximizing energy savings. The best selling model called KA023 3/4-wing revolving door is not only elegant but also economical and practical .
Safety Functions
1. Special Load-Bearing Structure
2. Vertical/horizontal safety switch
3. Anti-squeeze
4. Anti-strike
5. Force-sensitive Control
6. Torque Control
7. Panic breakout system
8. Handicap
9. Night Security Door
Operation Features
1. Continuous working mode
2. Go/Stop working mode
3. Remote control function
Technical Data
Power supply : 220VAC±10%,50HZ
Rated current :12VAC,50HZ
Rated power : 600W
Down lights : 400W
High speed adjustment range(revolving door) : 1-4r.p.m.
Low speed adjustment range(revolving door) : 0.5-1.5 r.p.m.
Ambient temperature : -30 - 45 degree
Max relative humidity : 90%.
Total weight : <1000Kg
Operating noise : <= 60db (A)

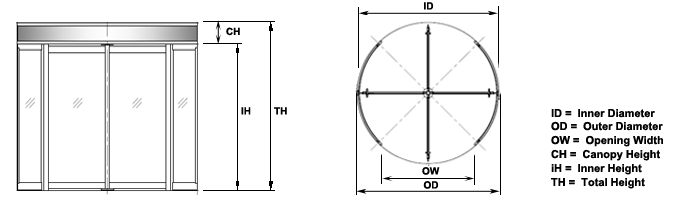

Specifications
Inner Dia(D) | 1800mm | 2100mm | 2400mm | 2700mm | 3000mm | 3600mm |
Outer Dia (DT) | 1880mm | 2180mm | 2480mm | 2780mm | 3080mm | 3680mm |
Clear height | 2300mm | 2300mm | 2300mm | 2300mm | 2300mm | 2300mm |
Canopy height | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
Total height | 2600mm | 2600mm | 2600mm | 2600mm | 2600mm | 2600mm |
Note : In addition to the standard dimensions, several other dimensions are available. For more information please contact your nearest distributor .
Key Components
1. Main control unit : SIEMENS from Germany
2. Operation program software : KBB
3. Transducer : SIEMENS
4. Drive unit : SIEMENS
5. Gear box : Sewdrive
6. Deceleration belt : CONTITECH
7. Spot light : PHILIPS from Netherlands
8. Detection radar : Infrared, BEA from Belgium
9. High precision speed /position radar : HENGSTLER
10. Emergency stop button : KBB
11. Handicap button : KBB
12. Curved glass : YAOPI, security laminated glass
13. Planar glass: YAOPI, security laminated glass
14. Aluminium frame profile : JIHUA
Note : Similar with KA023, we had another model of 3/4 wings revolving door called KA061,different from KA023, there are several obvious pillars outside of KA061 which covered the gaps on the door surface and make the whole door looks more aesthetic .
